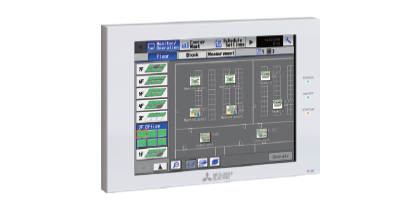

The new WEB Server 3D TOUCH Controller centralized controller is an evolution of the AG-150A, the first centralized controller on the market to introduce typical BMS functions such as installation layout map display modes.

While based on the same technology as its predecessor, the new controller offers even more flexibility for compatibility with future applications.

3D TOUCH Controller represents the state of the art in Mitsubishi Electric controller technology, and boasts class beating functions and features.

• Generously sized backlit 10.4” SVGA color touch screen with graphic layout display function. • Built-in 240V AC 50 / 60 Hz power supply.
• Stand-alone configuration: for managing up to 50 indoor units in total.
• Extended configuration: for managing up to 200 indoor units (with three EW-50 expansion modules)
• Individual or collective control of groups, blocks or zones.
• Ethernet interface for connection to BMS supervisor systems.
• Integrated WEB server software for management using Internet Explorer®.
• Integrated 2 GByte SD memory card for storing system data
• Power consumption data for billing downloadable via internet connection.
• BACnet® connection
• Complete support for all advanced RMI platform functions for energy consumption monitoring and for multi-installation and multi-user management.
• Temperature setpoints viewable and settable with a resolution of 0.5°C.
• Energy saving functions: Maintenance temperature, Sliding temperature, Optimized start, Dual Setpoint.
• M-Net interfacing with Ecodan package Hot Water Heat Pump systems (CAHV and CRHV). – E-mail fault notification function.
• Complete support for all advanced RMI platform functions for energy consumption monitoring and for multi-installation and multi-user management.
